Screw Extractors

Screw Extractors

Descriptions

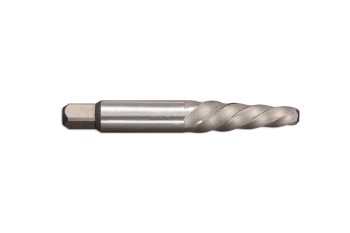

Used expressly for removing broken or seized screws. They are left-handed, for use on right-handed threads. The screw is first drilled out to the proper diameter for that extractor. The extractor is then inserted into this hole and turned counter-clockwise using a tap wrench. As the extractor is turned the flutes on the tool dig into the screw, causing it to lock tightly and apply sufficient torque to remove the screw.

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Nominal Diameter Overall Length Flute Length Finish Price
090101 No.1 AISI1095 SCREW EXTRACTOR No1 48mm 12mm Grey Finish
You need to be logged in to see prices.
090102 No.2 AISI1095 SCREW EXTRACTOR No2 59mm 18mm Grey Finish
You need to be logged in to see prices.
090103 No.3 AISI1095 SCREW EXTRACTOR No3 65mm 24mm Grey Finish
You need to be logged in to see prices.
090104 No.4 AISI1095 SCREW EXTRACTOR No4 76mm 33mm Grey Finish
You need to be logged in to see prices.
090105 No.5 AISI1095 SCREW EXTRACTOR No5 81mm 36mm Grey Finish
You need to be logged in to see prices.
090106 No.6 AISI1095 SCREW EXTRACTOR No6 94mm 43mm Grey Finish
You need to be logged in to see prices.
090107 No.7 AISI1095 SCREW EXTRACTOR No7 100mm 46mm Grey Finish
You need to be logged in to see prices.
090108 No.8 AISI1095 SCREW EXTRACTOR No8 111mm 56mm Grey Finish
You need to be logged in to see prices.
090109 No.9 AISI1095 SCREW EXTRACTOR No9 117mm 56mm Grey Finish
You need to be logged in to see prices.
