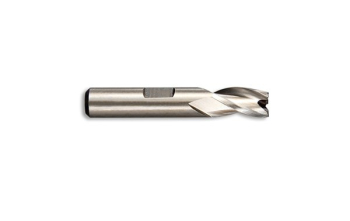

HSCo Short Series Throw-Away Tri Cutters

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Nominal Diameter Overall Length Flute Length Number of Flutes Material Finish Price
330111.0 1M FL/SH COB SHT TRICUT T/WAY CUT 1.00mm x 6mm 3Flt 24.5mm 2mm 3 HSCo P0 Bright Finish
330161.0 1M FLA CO SHT TRICUT T/WAT TiCN 1.00mm x 6mm 3Flt 24.5mm 2mm 3 HSCo P6 TiCN Coated
330111.5 1.5M FL/SH COB SHT TRICUT T/WAY CU 1.50mm x 6mm 3Flt 24.5mm 2.5mm 3 HSCo P0 Bright Finish
330161.5 1.5M FLA CO SHT TRICUT T/WAY TiCN 1.50mm x 6mm 3Flt 24.5mm 2.5mm 3 HSCo P6 TiCN Coated
33011-116 1/16 FL/SH COB SHT TRICUT T/WAY CU 1/16" x 1/4" 3Flt 31/32" 3/32" 3 HSCo P0 Bright Finish
33016-116 1/16 FLA CO SHT TRICUT T/WAY TiCN 1/16" x 1/4" 3Flt 31/32" 3/32" 3 HSCo P6 TiCN Coated
330111.8 1.8M FL/SH COB SHT TRICUT T/WAY CU 1.80mm x 6mm 3Flt 25.5mm 3mm 3 HSCo P0 Bright Finish
330161.8 1.8M FLA CO SHT TRICUT T/WAY TiCN 1.80mm x 6mm 3Flt 25.5mm 3mm 3 HSCo P6 TiCN Coated
330112.0 2M FL/SH COB SHT TRICUT T/WAY CUT 2.00mm x 6mm 3Flt 25.5mm 3mm 3 HSCo P0 Bright Finish
330162.0 2M FLA CO SHT TRICUT T/WAY TiCN 2.00mm x 6mm 3Flt 25.5mm 3mm 3 HSCo P6 TiCN Coated
33011-332 3/32 FL/SH COB SHT TRICUT T/WAY CU 3/32" x 1/4" 3Flt 1.1/64" 5/32" 3 HSCo P0 Bright Finish
33016-332 3/32 FLA CO SHT TRICUT T/WAY TiCN 3/32" x 1/4" 3Flt 1.1/64" 5/32" 3 HSCo P6 TiCN Coated
330112.5 2.5M FL/SH COB SHT TRICUT T/WAY CU 2.50mm x 6mm 3Flt 26mm 4mm 3 HSCo P0 Bright Finish
330162.5 2.5M FLA CO SHT TRICUT T/WAY TiCN 2.50mm x 6mm 3Flt 26mm 4mm 3 HSCo P6 TiCN Coated
330112.8 2.8M FL/SH COB SHT TRICUT T/WAY CU 2.80mm x 6mm 3Flt 28mm 4.5mm 3 HSCo P0 Bright Finish
330162.8 2.8M FLA CO SHT TRICUT T/WAY TiCN 2.80mm x 6mm 3Flt 28mm 4.5mm 3 HSCo P6 TiCN Coated
330113.0 3M FL/SH COB SHT TRICUT T/WAY CUT 3.00mm x 6mm 3Flt 28mm 4.5mm 3 HSCo P0 Bright Finish
330163.0 3M FLA CO SHT TRICUT T/WAT TiCN 3.00mm x 6mm 3Flt 28mm 4.5mm 3 HSCo P6 TiCN Coated
33011-18 1/8 FL/SH COB SHT TRICUT T/WAY CUT 1/8" x 1/4" 3Flt 1.3/32" 3/16" 3 HSCo P0 Bright Finish
33016-18 1/8 FLA CO SHT TRICUT T/WAY TiCN 1/8" x 1/4" 3Flt 1.3/32" 3/16" 3 HSCo P6 TiCN Coated
330113.5 3.5M FL/SH COB SHT TRICUT T/WAY CU 3.50mm x 6mm 3Flt 30mm 5.5mm 3 HSCo P0 Bright Finish
330163.5 3.5M FLA CO SHT TRICUT T/WAY TiCN 3.50mm x 6mm 3Flt 30mm 5.5mm 3 HSCo P6 TiCN Coated
330113.8 3.8M FL/SH COB SHT TRICUT T/WAY CU 3.80mm x 6mm 3Flt 32.5mm 6.5mm 3 HSCo P0 Bright Finish
330163.8 3.8M FLA CO SHT TRICUT T/WAY TiCN 3.80mm x 6mm 3Flt 32.5mm 6.5mm 3 HSCo P6 TiCN Coated
33011-532 5/32 FL/SH COB SHT TRICUT T/WAY CU 5/32" x 1/4" 3Flt 1.9/32" 1/4" 3 HSCo P0 Bright Finish
33016-532 5/32 FLA CO SHT TRICUT T/WAY TiCN 5/32" x 1/4" 3Flt 1.9/32" 1/4" 3 HSCo P6 TiCN Coated
330114.0 4M FL/SH COB SHT TRICUT T/WAY CUT 4.00mm x 6mm 3Flt 32.5mm 6.5mm 3 HSCo P0 Bright Finish
330164.0 4M FLA CO SHT TRICUT T/WAY TiCN 4.00mm x 6mm 3Flt 32.5mm 6.5mm 3 HSCo P6 TiCN Coated
330114.5 4.5M FL/SH COB SHT TRICUT T/WAY CU 4.50mm x 6mm 3Flt 36mm 7.5mm 3 HSCo P0 Bright Finish
330164.5 4.5M FLA CO SHT TRICUT T/WAY TiCN 4.50mm x 6mm 3Flt 36mm 7.5mm 3 HSCo P6 TiCN Coated
33011-316 3/16 FL/SH COB SHT TRICUT T/WAY CU 3/16" x 1/4" 3Flt 1.11/32" 9/32" 3 HSCo P0 Bright Finish
33016-316 3/16 FLA CO SHT TRICUT T/WAY TiCN 3/16" x 1/4" 3Flt 1.11/32" 9/32" 3 HSCo P6 TiCN Coated
330114.8 4.8M FL/SH COB SHT TRICUT T/WAY CU 4.80mm x 6mm 3Flt 36mm 7.5mm 3 HSCo P0 Bright Finish
330164.8 4.8M FLA CO SHT TRICUT T/WAY TiCN 4.80mm x 6mm 3Flt 36mm 7.5mm 3 HSCo P6 TiCN Coated
330115.0 5M FL/SH COB SHT TRICUT T/WAY CUT 5.00mm x 6mm 3Flt 36mm 7.5mm 3 HSCo P0 Bright Finish
330165.0 5M FLA CO SHT TRICUT T/WAY TiCN 5.00mm x 6mm 3Flt 36mm 7.5mm 3 HSCo P6 TiCN Coated
330115.5 5.5M FL/SH COB SHT TRICUT T/WAY CU 5.50mm x 6mm 3Flt 36mm 9.5mm 3 HSCo P0 Bright Finish
330165.5 5.5M FLA CO SHT TRICUT T/WAY TiCN 5.50mm x 6mm 3Flt 36mm 9.5mm 3 HSCo P6 TiCN Coated
33011-732 7/32 FL/SH COB SHT TRICUT T/WAY CU 7/32" x 1/4" 3Flt 1.13/32" 5/16" 3 HSCo P0 Bright Finish
33016-732 7/32 FLA CO SHT TRICUT T/WAY TiCN 7/32" x 1/4" 3Flt 1.13/32" 5/16" 3 HSCo P6 TiCN Coated
330115.75 5.75 FLT COB SHT TRICUT T/WAY CUT 5.75mm x 6mm 3Flt 36mm 9.5mm 3 HSCo P0 Bright Finish
330116.0 6M FL/SH COB SHT TRICUT T/WAY CUT 6.00mm x 6mm 3Flt 36mm 9.5mm 3 HSCo P0 Bright Finish
330166.0 6M FLA CO SHT TRICUT T/WAY TiCN 6.00mm x 6mm 3Flt 36mm 9.5mm 3 HSCo P6 TiCN Coated
33011-14 1/4 FL/SH COB SHT TRICUT T/WAY CUT 1/4" x 1/4" 3Flt 1.13/32" 3/8" 3 HSCo P0 Bright Finish
33016-14 1/4 FLA CO SHT TRICUT T/WAY TiCN 1/4" x 1/4" 3Flt 1.13/32" 3/8" 3 HSCo P6 TiCN Coated
You need to be logged in to see prices.
